The Multiwire Machine is suitable for cutting granite, quartzite, marble, limestone and others.
Learn more about this premium quality product.

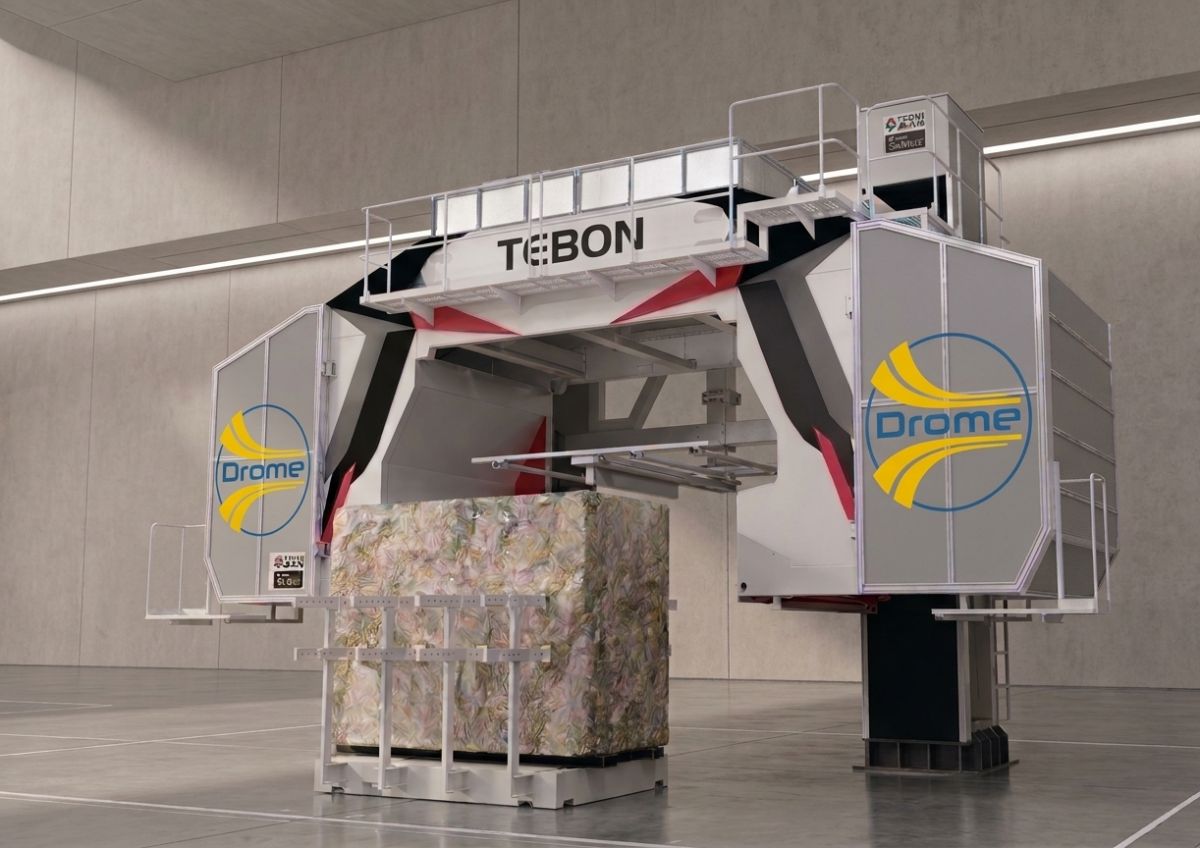

Multiwire Machine
Designed for cutting granite, quartzite, marble, limestone and other materials from quarries.
Equipment characteristics
- Max block size 3600 × 2150 mm
- Wire length 20 000 mm
- Line speed 20–35 m/s
- Trolley load capacity 40 t
- Tensioning system Independent hydraulic
| Wires | Main motor (kW) | Total power (kW) | Weight (t) |
|---|---|---|---|
| 42 | 132 | ≈162 | 46 |
| 56 | 200 | ≈230 | 55 |
| 72 | 220 | ≈250 | 62 |
| 76 | 250 | ≈280 | 65 |
| Wires | Slab thickness (mm) | Main motor (kW) | Total power (kW) | Weight (t) |
|---|---|---|---|---|
| 42 | 21 / 30 / 39 / 48 / 75 | 132 | ≈162 | 46 |
| 56 | 21 / 30 / 39 / 48 / 75 | 200 | ≈230 | 55 |
| 72 | 20.4 / 29.2 / 38 / 46.8 / 73.2 | 220 | ≈250 | 63 |
| 74 | 21 / 30 / 39 / 48 / 75 | 250 | ≈280 | 64 |
| 76 | 20.4 / 29.2 / 38 / 46.8 / 73.2 | 250 | ≈280 | 65 |
| 86 | 18.3 / 26.4 / 34.5 / 42.6 / 66.9 | 280 | ≈310 | 68 |
