Quarry Wire Machines are designed for cutting and extracting large blocks of natural stone.
Learn more about these premium quality products.

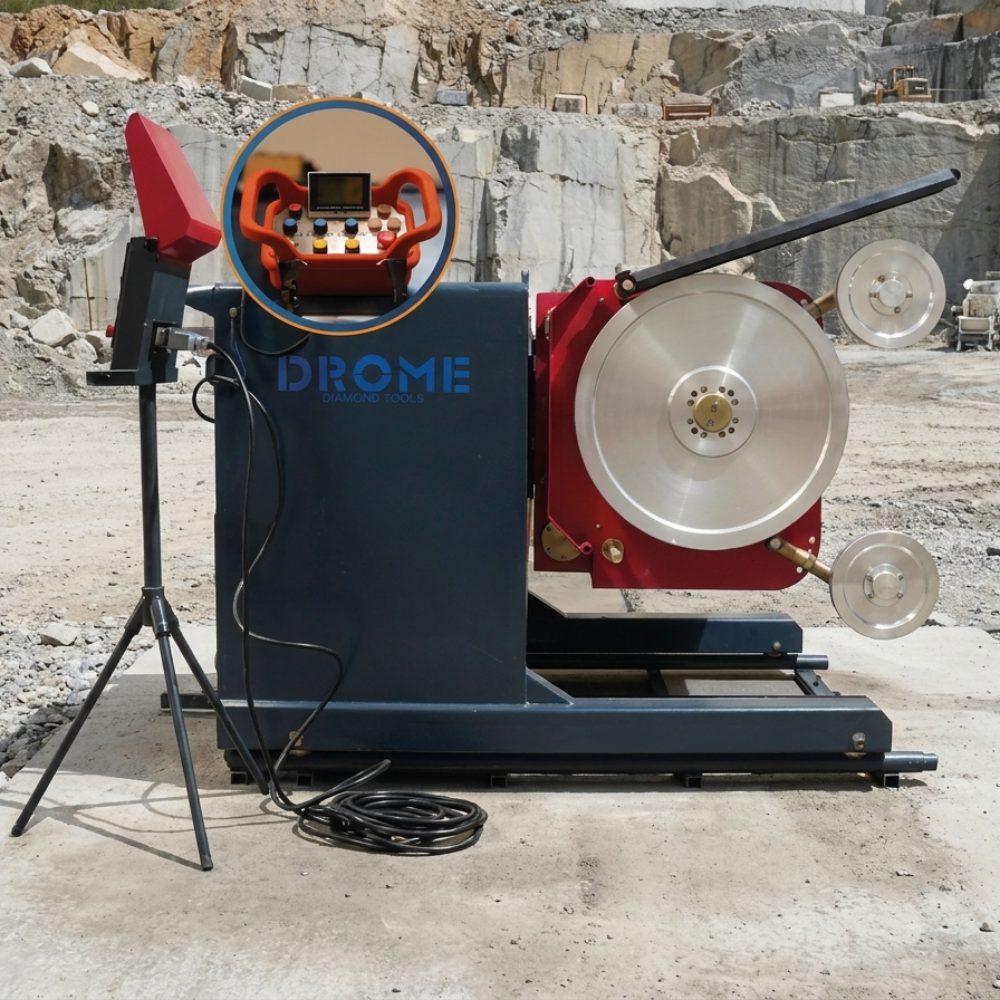

Wire Machine for Quarries
Designed for quarries, it is robust and efficient, being mainly used to cut and extract large blocks of natural stone.
Equipment characteristics
- Traction motor power 1.5KW
- Head rotation motor power 1.5KW
- Total installed power 58.0KW
- Minimum current required 100Kva
- Electrical connection 380-400V
- Main motor variable speed 0-40m/s
- Engine RPM 40m/s 950 RPM
- Head rotation angle 360º
- Maximum head travel distance 2,000mm
- Operating temperature -20ºC / 50ºC
- Machine dimensions 2,000×1,500×1,400mm
- Distance between tracks 1,400mm
- Number of trails 10m (5 x 2m)
- Machine weight 2,600kg
- Main pulley diameter 800mm
- Auxiliary pulley diameter 320mm
Wire Machine for Quarries
Designed for quarries, it is robust and efficient, being mainly used to cut and extract large blocks of natural stone.
Equipment characteristics
- Main motor power 100HP 75KW 08 Poles
- Traction motor power 1.5KW
- Head rotation motor power 1.5KW
- Total installed power 78.0KW
- Minimum current required 120Kva
- Electrical connection 380-400V
- Main motor variable speed 0-40m/s
- Engine RPM 40m/s 950 RPM
- Head rotation angle 360º
- Maximum head travel distance 2,000mm
- Operating temperature -20ºC / 50ºC
- Machine dimensions 2,000×1,450×1,400mm
- Number of trails 10m (5 x 2.0m)
- Machine weight 3,300Kg
- Main pulley diameter 800mm
- Auxiliary pulley diameter 320mm
Crawler Wire Machine
Designed for cutting granite, quartzite, marble, limestone and other materials from quarries.
Equipment characteristics
- PMP Engine Low Consumption
- Tensioning System Hydraulic
- Car load capacity 40T
- Cable Size 20M
- Cutting Area 3,600 x 2,150 mm
